Anker PowerWave+ Pad with Watch Holder

57 $
Next

Anker 633 MagGo 2 in 1 Wireless Charging Station

120 $
Next Product Image

Acefast PD 218W GaN Desktop Power Station Z4

104 $

SKU: ADD3B8FD Category:
Trust Badge Image

Description

Acefast PD 218W GaN Desktop Power Station Z4

Specifications

Product name:
ACEFAST Z4 PD218W GaN desktop power station (EU).
Input:
AC110-240V, 2.5A, 50Hz/60Hz, EU plug.
Output mode A:
Single port output:

  • USB-C1: 3.3-21V⎓5A (PPS), 5V / 9V / 12V / 15V⎓3A, 20V⎓5A – 100W max.
  • USB-C2: 3.3-11V⎓5A (PPS), 5V / 9V / 12V / 15V⎓3A, 20V⎓3.25A – 65W max.
  • USB-C3: 3.3-11V⎓3A (PPS), 5V / 9V⎓3A, 12V⎓2.5A, 15V⎓2A, 20V⎓1.5A – 30W max.
  • USB-A1: 5V⎓3A, 9V⎓2A, 12V⎓1.5A – 18W max.

Four ports output:

  • USB-C1 + USB-C2 + USB-C3 + USB-A1: 100W + 65W + 30W + 18W – 213W max.
Output mode B:
Single port output:

  • USB-C1: 3.3-11V⎓5A (PPS), 5V / 9V / 12V / 15V⎓3A, 20V⎓3.25A – 65W max.
  • USB-C2: 3.3-11V⎓5A (PPS), 5V / 9V / 12V / 15V⎓3A, 20V⎓3.25A – 65W max.
  • USB-C3: 3.3-21V⎓3A (PPS), 5V / 9V / 12V / 15V⎓3A, 20V⎓3.25A – 65W max.
  • USB-A1: 5V⎓3A, 9V⎓2A, 12V⎓1.5A – 18W max.

Four ports output:

  • USB-C1 + USB-C2 + USB-C3 + USB-A1: 65W + 65W + 65W + 18W – 213W max.
Output mode C:
Single port output:

  • USB-C1: 3.3-21V⎓5A (PPS), 5V / 9V / 12V / 15V⎓3A, 20V⎓5A – 100W max.
  • USB-C2: 3.3-21V⎓5A (PPS), 5V / 9V / 12V / 15V⎓3A, 20V⎓5A – 100W max.
  • USB-A1: 5V⎓3A, 9V⎓2A, 12V⎓1.5A – 18W max.

Three ports output:

  • USB-C1 + USB-C2 + USB-A1: 100W + 100W + 18W – 218W max.
Output mode D:
Single port output:

  • USB-C1: 3.3-21V⎓5A (PPS), 5V / 9V / 12V / 15V⎓3A, 20V⎓5A – 100W max.
  • USB-C2: 3.3-21V⎓5A (PPS), 5V / 9V / 12V / 15V⎓3A, 20V⎓5A – 100W max.
  • USB-C3: 3.3-11V⎓2A (PPS), 5V⎓3A, 9V⎓2A, 12V⎓1.5A – 18W max.

Three ports output:

  • USB-C1 + USB-C2 + USB-C3: 100W + 100W + 18W – 218W max.
Total output :
218W (max).
Support fast charge protocols by ports:
USB-C1 / USB-C2 / USB-C3:

  • PD3.0 / AFC / FCP / SCP / QC2.0 / QC3.0 / QC4+ / PPS.

USB-A1:

  • AFC / FCP / QC2.0 / QC3.0.
Material:
Flame-retardant PC.
Sizes:
102.5 x 93 x 44.5mm.
Cable length:
1.5m.
Weight:
655g.
Certification:
CE, RoHS.
Feature 1:
4 charging modes can be switched, the high power of 218W matches the charging power required by different devices.
Feature 2:

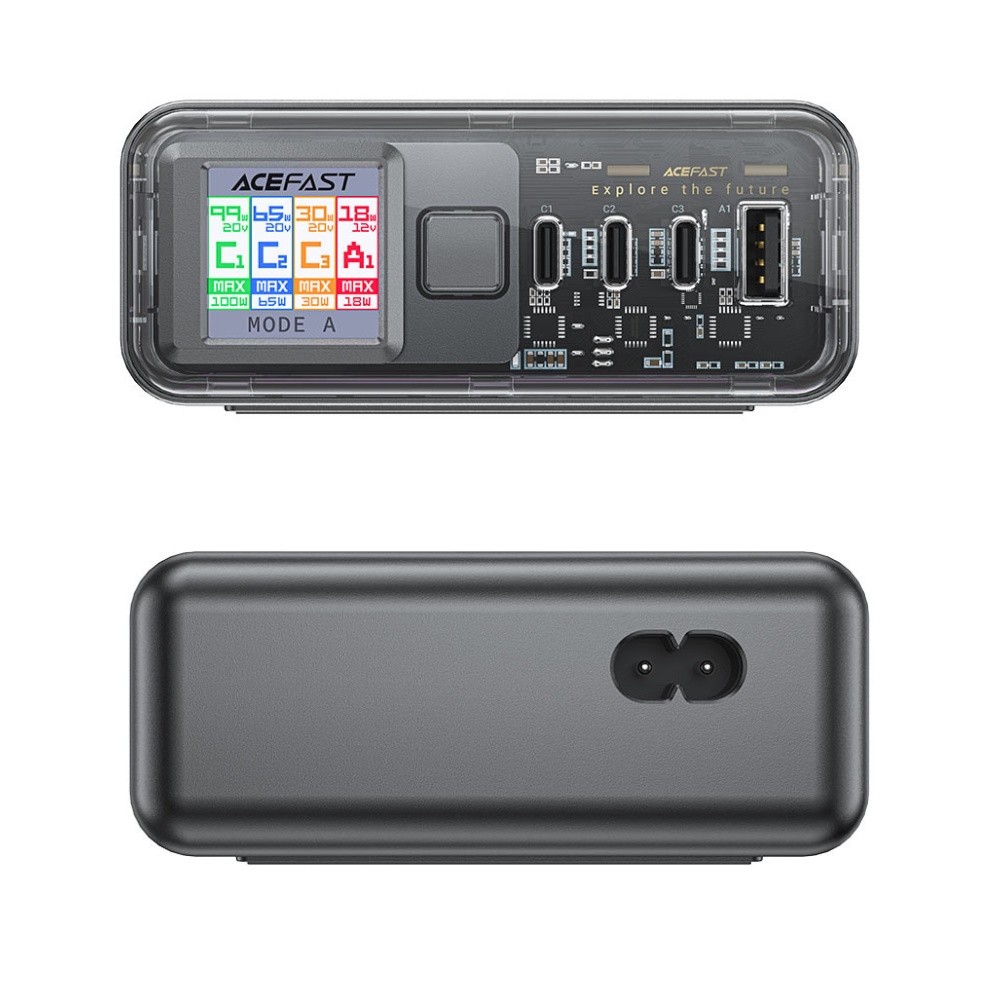

Display shows the voltage and charging status of each port in real time.
Feature 3:
The GaN technology is used to improve the overall energy and efficiency. Smaller size and lower temperature charging.
Feature 4:
1.25mm² bold copper wire, high safety factor.
Feature 5:
Suitable for fast charging of devices such as phones / tablets / laptops / game consoles, etc.
Feature 6:
Multiple safety protection.

Brand

Acefast
